BS-4000A Trinocular Industrial Inspection Microscope
Introduction
Feature
2. Well designed structure, easy to operate.
3. Excellent optical quality with Infinite Optical System and LWD high magnification objective.
4. Stage speedy movement by hand to get observation point immediately.
5. Easy, Safe and Reliable Lamp Replacement.
6. Comfortable and enjoyable operation with low and pre position control knob.

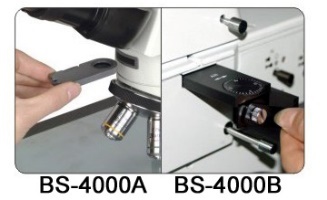

Suitable for different Specimen Observation with Polarization Set. | |

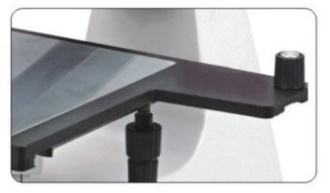

Big stage with extra large moving range, both movement by hand and precise adjustment by knob are available. |
Application
It is specially used in IT Industry for Large Area Integrate Circuit board, Wafer Observation and other industrial Inspection.
Specification
Item | Specification | BS-4000A | BS-4000B | |
Viewing Head | Seidentopf type trinocular head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm | ● | ● | |
Eyepiece | Extra Wide Field Eyepiece EW10×/ 22 | ● | ● | |
Objective | Infinite Plan Achromatic Objectives | 4×/0.1/∞/- WD 17.8mm | ● | |
5×/0.12/∞/- WD 15.5mm | ○ | ● | ||
10×/0.25/∞/- WD 10.0mm | ● | |||
10×/0.25/∞/- (BF/DF) WD 10.0mm | ● | |||
20×/0.40/∞/0 WD 5.8mm | ● | |||
20×/0.40/∞/0 (BF/DF) WD 4.3mm | ● | |||
40×/0.6/∞/0 WD 2.9mm | ● | |||
50×/0.75/∞/0 WD 0.32mm | ○ | ● | ||
100×/0.8/∞/0 WD 2.0mm | ○ | ● | ||
Nosepiece | Quadruple Nosepiece | ● | ||
Quintuple Nosepiece | ● | |||
Stage | Stage size 300×268mm, Moving range 250×250mm | ● | ● | |
Focusing | Coaxial coarse & fine Adjustment, Moving Range 24mm | ● | ● | |
Illumination | 6V/ 20W Halogen Lamp, Brightness Adjustable | ● | ||
24V/ 100W Halogen Lamp, Brightness Adjustable | ● | |||
Polarization Set | Analyzer and Polarizer | ○ | ○ | |
Filter | Blue, Green, Yellow and Frosted glass filters | ● | ● | |
Photo Adapter | Used to connect DSLR cameras(Nikon & Canon) | ○ | ○ | |
Video Adapter | 1× or 0.5× C-Mount | ○ | ○ | |
Note: ● Standard Outfit, ○ Optional

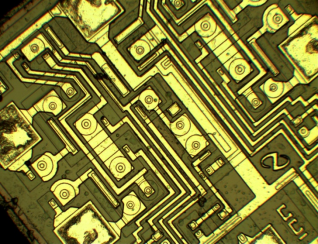

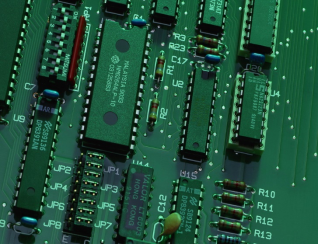

Sample Image
