BWHC-4K8MPA 4K UHD HDMI/GigE/WiFi Multi-Outputs Microscope Camera (Sony IMX334 Sensor, 4K, 8.0MP)
Introduction
BWHC-4K series comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters.
The cameras use a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television, or live-streamed to a PC via Gigabit Ethernet (GE) for image-capture and video-recording.
Hardware 3D denoising, sharpness and local tone mapping control functions greatly improve the image and video quality.
The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
The BWHC-4K series cameras are intended to be used for the acquisition of digital images from the stereo microscope, biological microscope or online interactive teaching.
1. Sony Exmor CMOS sensor;
2. 4K HDMI/GE/WLAN multiple video outputs;
3. 4K/1080P auto switching according to the display resolution;
4. SD card/USB flash disk for the captured image and video storage;
5. Embedded XCAMView for the control of the camera with mouse, no shaking;
6. With strong ISP and other related processing functions;
7. ImageView software for PC;
8. iOS/Android applications for smart phones or tablets.
2. Digital laboratory, medical research;
3. Machine vision (PCB detection, IC quality control);
4. Medical treatment (pathological observation);
5. Food (microbial colony observation and counting);
6. Aviation and military.
Specification
Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
BWHC-4K8MPA | 4K/Sony IMX334(C) 1/1.8"(7.68x4.32) | 2.0x2.0 | 505mv with 1/30s 0.13mv with 1/30s | 60@3840*2160(HDMI) | 1x1 | 0.04ms~1000ms |

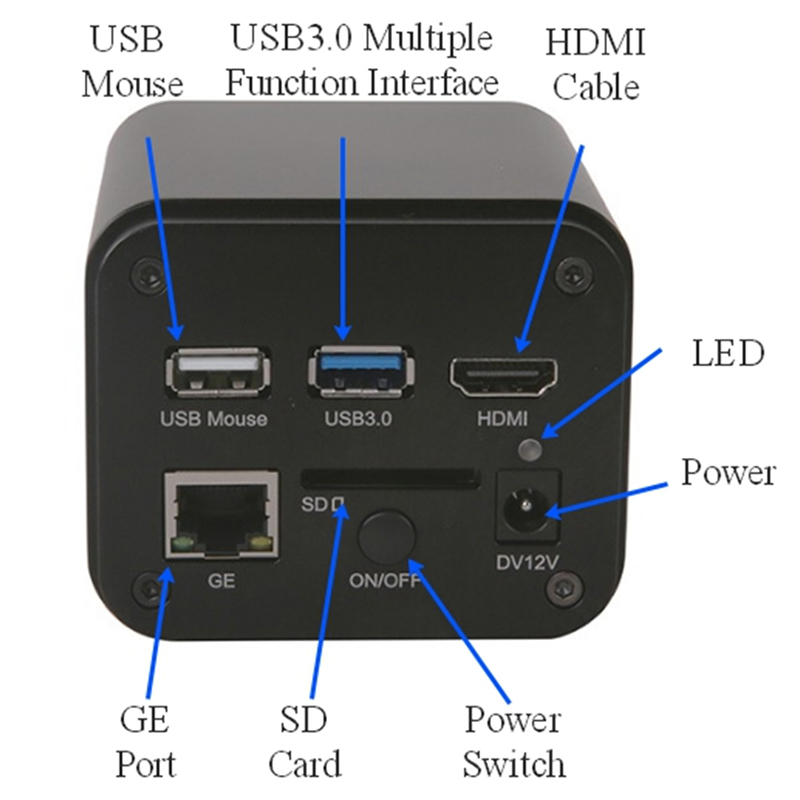

Interface & Button Functions | ||
| USB Mouse | Connect USB mouse for easy operation of the embedded XCAMView software |
USB3.0 | Connecting USB flash disk for image or video storage; Connecting 5G WLAN adapter as WLAN camera in AP or STA mode; | |
HDMI | Comply with HDMI2.0 standard. 4K/1080P format video output and supporting auto switching between 4K and 1080P format according to the connected display resolution | |
GE | Gigabit Ethernet port to connect to the PC for the video streaming | |
SD | Comply with SDIO3.0 standard and SD card could be inserted for the images or videos storage | |
DC12V | Power adapter connection (12V) | |
ON/OFF | Power switch | |
LED | Camera status indicator | |
Other Specification for HDMI Output | ||
UI Operation | With USB Mouse | |
Image Capture | 8M (3840*2160) JPEG Image in SD Card or USB Flash Disk(BWHC-4K8MPA) 16M (5440*3060) JPEG Image in SD Card or USB Flash Disk(BWHC-4K16MPA) | |
Video Record | Video Format: 8M(3840*2160) H264 Encoded MP4 Format (BWHC-4K8MPA, BWHC-4K16MPA) Video Recording Frame Rate: 50~60FPS(BWHC-4K8MPA),26~30FPS(BWHC-4K16MPA) (related with the SD card speed class and video resolution) | |
Camera Control Panel | Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control | |
Toolbar | Including Zoom, Mirror, Comparison (Video~image, image~image), Freeze, Cross, Browser Function | |
Other Specification for GE Output | ||
White Balance | Auto/Manual/ROI White Balance | |
Color Technique | Ultra-FineTM Color Engine | |
Capture/Control API | Standard GE API for Windows/Linux/Mac | |
Recording System | Still Picture or Video | |
Software Environment | ||
Operating System | Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit) OSx(Mac OS X) Linux | |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher | |
Memory: 4GB or More | ||
Ethernet Port: RJ45 Ethernet Port | ||
Display:19” or Larger | ||
CD-ROM | ||
Operating Environment | ||
Operating Temperature (in Centigrade) | -10°~ 50° | |
Storage Temperature (in Centigrade) | -20°~ 60° | |
Operating Humidity | 30~80%RH | |
Storage Humidity | 10~60%RH | |
Power Supply | DC 12V/1A Adapter | |

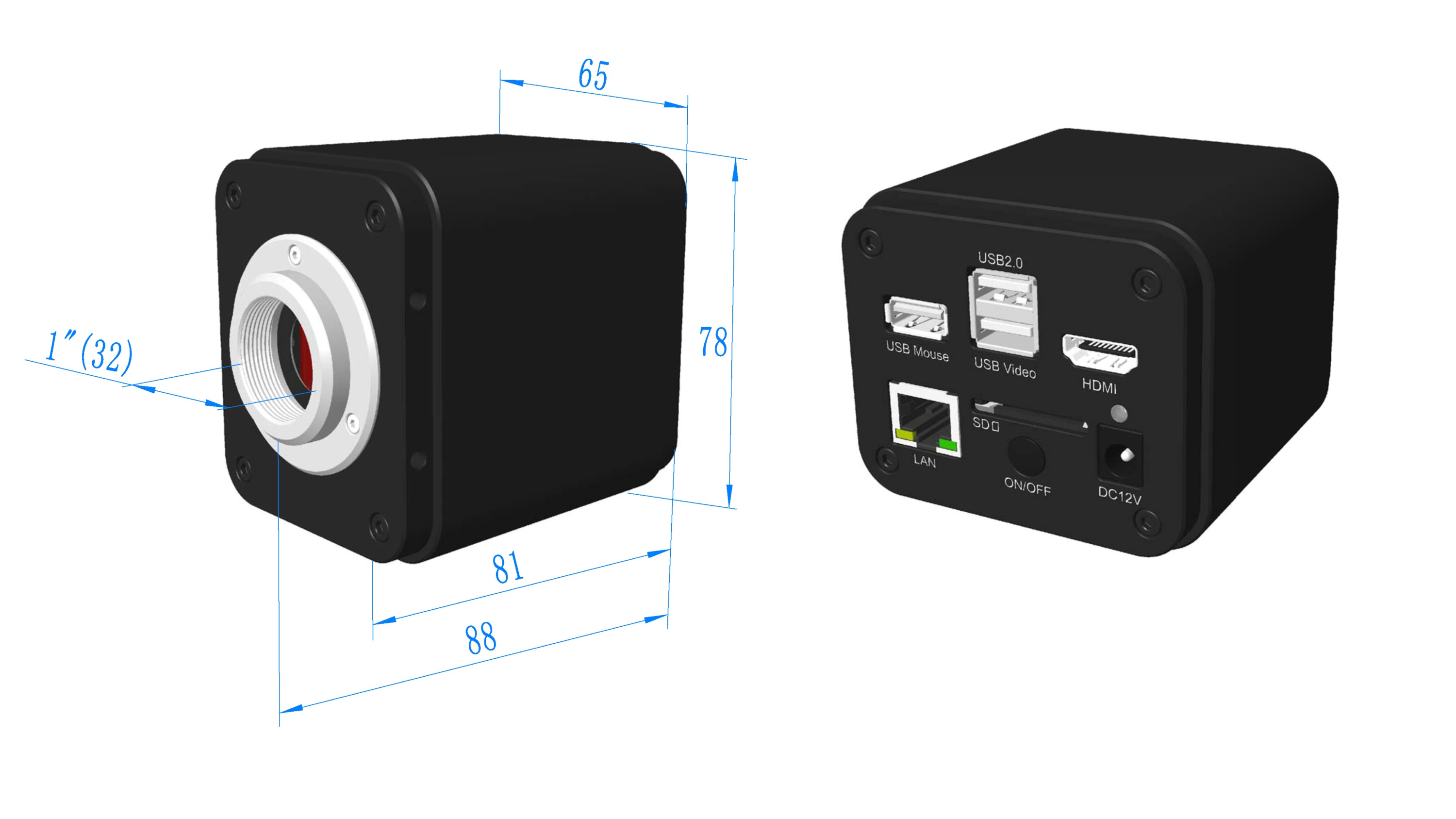

Dimension of BWHC-4K Series
Dimension of BWHC-4K Series

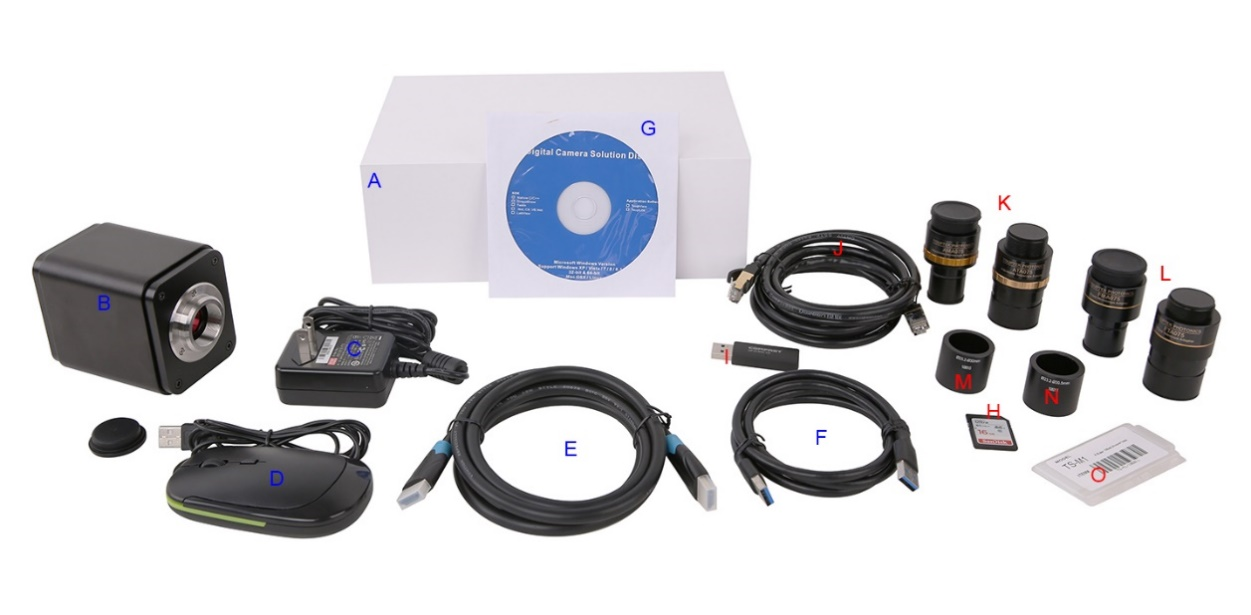

Packing Information of BWHC-4K Series
Standard Packing List | ||
A | Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.43Kg/ box) | |
B | BWHC-4K Series Camera | |
C | Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC EMI Standard: EN55022, EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 EMS Standard: EN61000-4-2,3,4,5,6,8,11, EN61204-3, Class A Light Industry Standard European standard: Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS EMI Standard: EN55022, EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 EMS Standard: EN61000-4-2,3,4,5,6,8,11, EN61204-3, Class A Light Industry Standard | |
D | USB Mouse | |
E | HDMI 2.0 Cable(Support 3840x2160, 60FPS) | |
F | High-speed USB3.0 A male to A male gold-plated connectors cable /2.0m | |
G | CD (Driver & utilities software, Ø12cm) | |
Optional Accessory | ||
H | SD Card (16G or above; Speed: Class 10) | |
I | USB WLAN adapter | |
J | Ethernet cable | |
K | Adjustable lens adapter | C-Mount to Dia.23.2mm Eyepiece Tube |
C-Mount to Dia.31.75mm Eyepiece Tube | ||
L | Fixed lens adapter | C-Mount to Dia.23.2mm Eyepiece Tube |
C-Mount to Dia.31.75mm Eyepiece Tube | ||
Note: For K and L optional items, please specify your camera type (C-mount, microscope camera or telescope camera), our engineer will help you to determine the right microscope or telescope camera adapter for your application; | ||
M | 108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube | |
N | 108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube | |
O | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); |

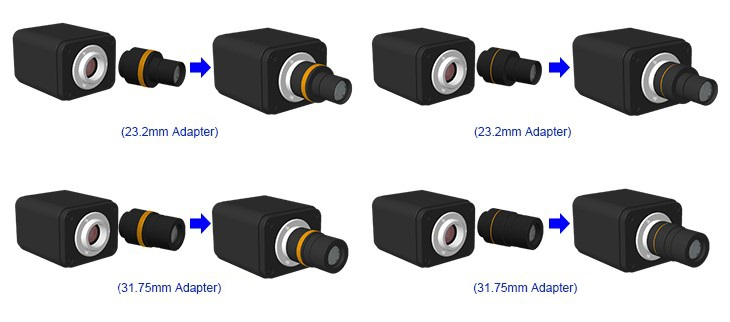

Extension of XCAM4K Series with Microscope or Telescope Adapter
Extension | Picture | |
C-mount Camera | Machine vision; Medical imaging; | |
Microscope Camera |
| |
Telescope Camera | ||
Images Captured by BWHC-4K8MPA
Rabbit Embryo Ovary
Cotton Stem Taste Bud
Blood cells Corn Leaf

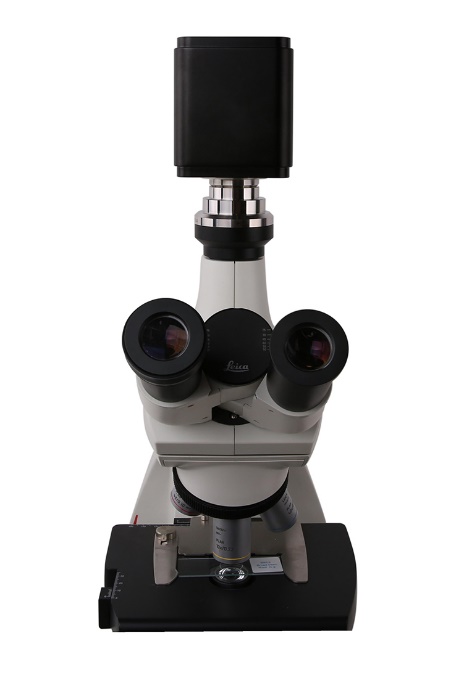

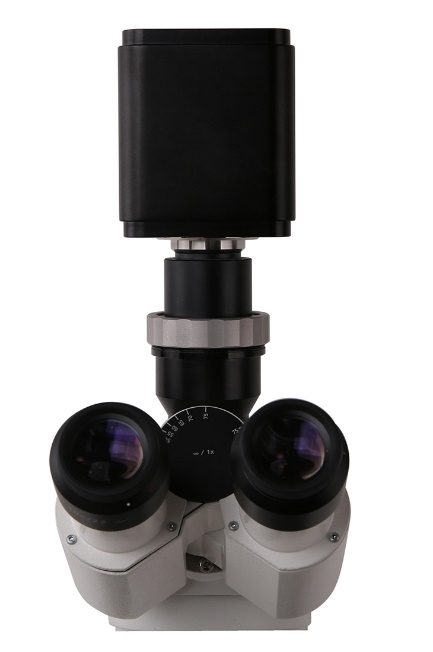

BWHC-4K Camera and Microscopes

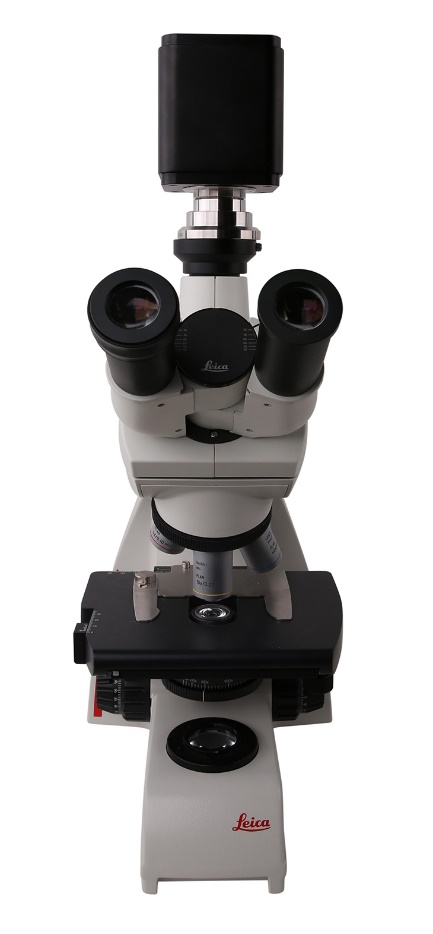

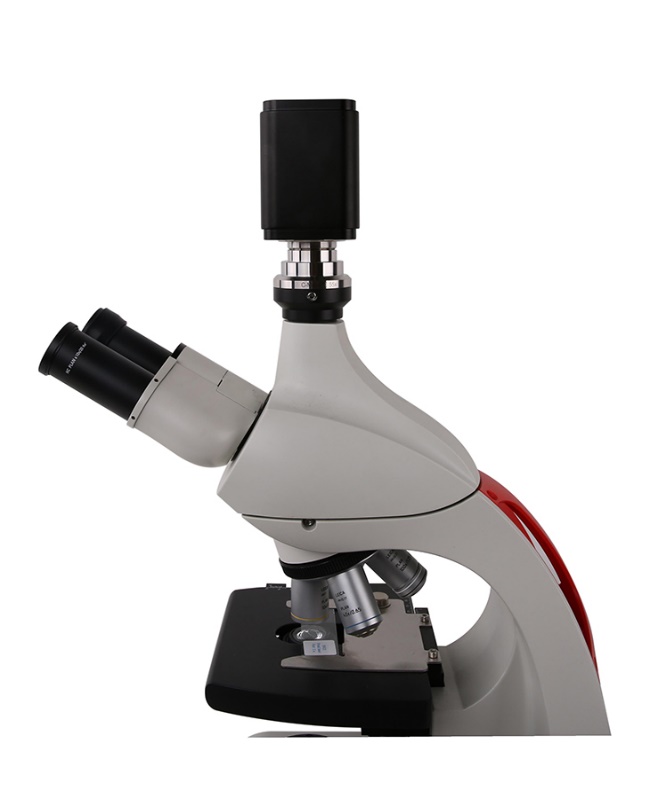

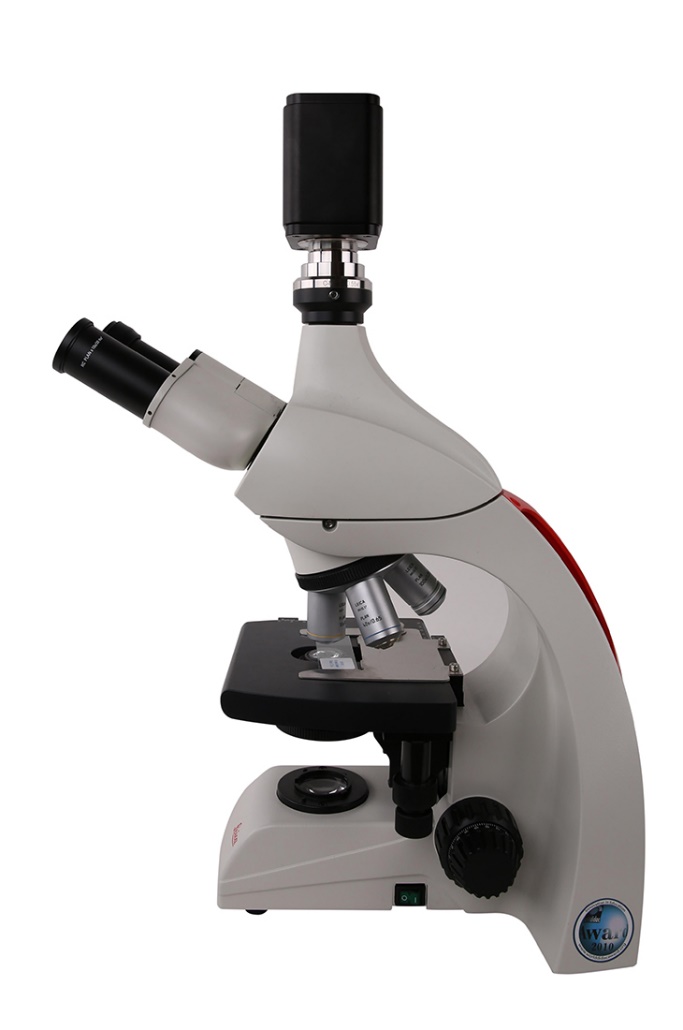

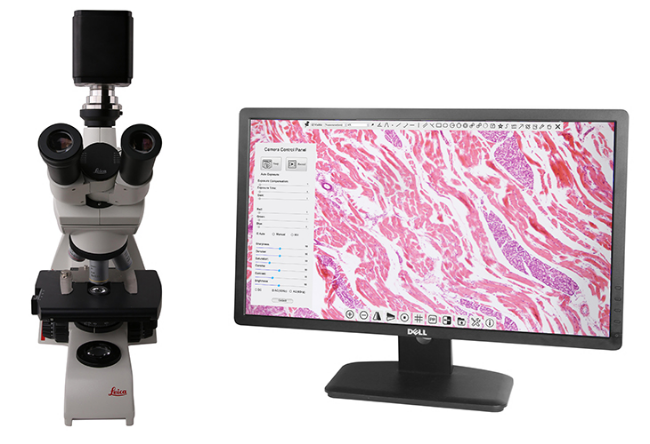

BWHC-4K Camera and Leica Microscope

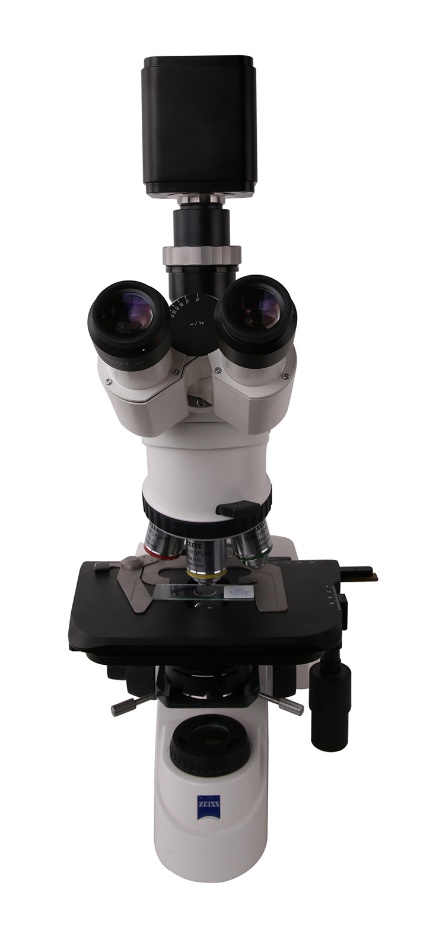

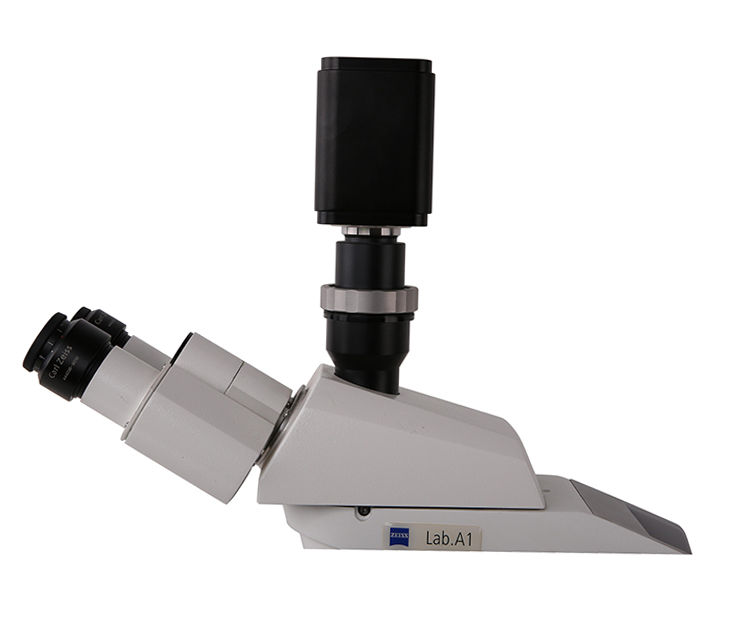

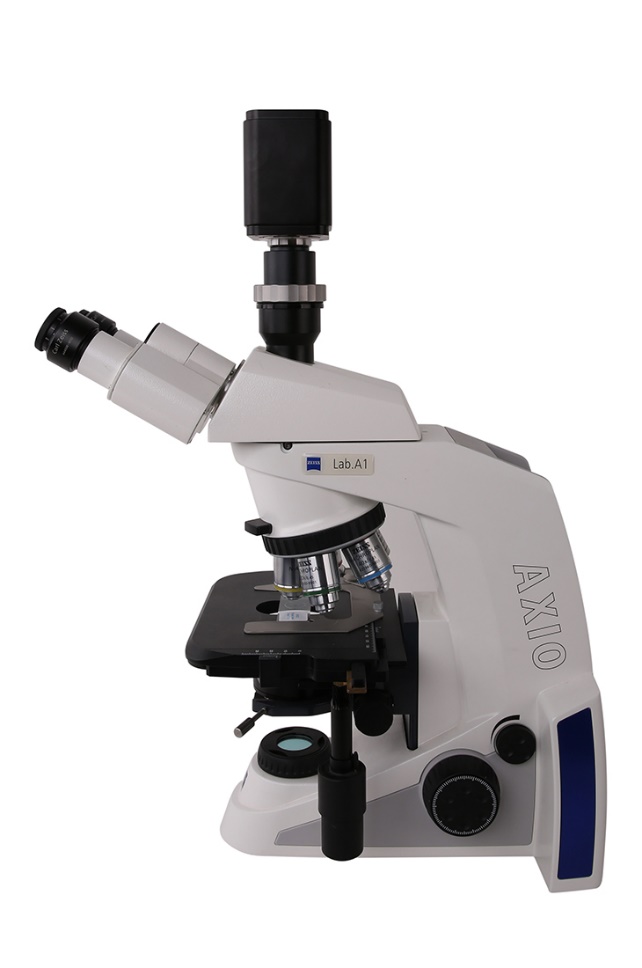

BWHC-4K Camera and Zeiss Microscope
