BLC-280 13.3 Inch C-mount HDMI+USB Output CMOS LCD Microscope Camera (Sony IMX415 Sensor, 8.0MP)

Introduction

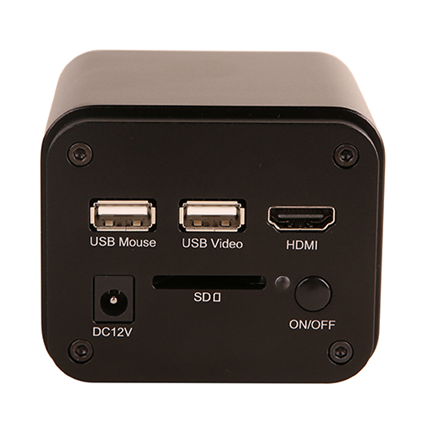

BLC-280 LCD digital camera is a combination of BHC4-1080P8MPB HDMI digital camera and HD1080P133A 13.3” high-definition IPS LCD display. The multiple interfaces (HDMI+USB2.0+SD card) CMOS camera has adopted ultra-high performance Sony IMX415 CMOS sensor as the image-picking device. HDMI+USB2.0 are used as the data transfer interface to HDMI display or computer.

HD1080P133A HD LCD screen has adopted IPS LCD panel (Super TFT) to guarantee the wide view angle and high contrast. Together with the HDMI camera, HD1080P133A could make the imaging & display solution simple, flexible and intuitive. Outstanding performance of HD1080P133A helps the HDMI camera reach fast frame rate and excellent color.

For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI LCD dsiplayer. In this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video and make measurements.

For USB2.0 output, unplug the mouse and plug in the USB2.0 cable to the camera and computer, then the video stream can be transfer to computer with the advanced software ImageView.

The included Windows software ImageView offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection.

For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

Features

The BLC-280LCD digital camera’s basic characteristics are as follows:

1. All in 1( HDMI+USB+SD card) C-mount camera with Sony high sensitivity CMOS sensor;

2. Simultaneous HDMI & USB output;

3. Built-in mouse control;

4. Built-in image capture & video record to SD card;

5. Built-in camera control panel, including exposure(manual/auto)/gain, white balance(lockable), color adjustment, sharpness and denoising control;

6. Built-in toolbar including zoom, mirror, comparison, freeze, cross, browser functions;

7. Built-in image & video browsing, display & play;

8. Ultra-Fine color engine with perfect color reproduction capability (USB2.0);

9. Support standard UVC for Windows/Linux/Mac (USB);

10. With advanced video & image processing application ImageView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB);

11. CNC precision machining shell;

12. True 1080P HDMI displayer;

13. 13.3 inch active area;

14. IPS LCD panel, 178 degree wide viewing angle;

15. HDR dynamic image enhancement;

16. 72% SRGB primary gamut;

17. 400cd/m2 display brightness, high contrast ratio up to 1000:1;

18. 4mm narrow frame design on three sides, with 90% of the screen area, great visual experience;

19. No delay is felt with 3ms response, and dynamic definition is optimized to keep the picture stable and clear without residual shadow;

20. Integrated invisible folding support, easy viewing angle adjustment.

Application

The possible applications of BLC-280 LCD digital camera are as follows:

      1. Scientific research, education (teaching, demonstration and academic exchanges);

      2. Digital laboratory, medical research;

      3. Industrial visual (PCB examination, IC quality control);

      4. Medical treatment (pathological observation);

      5. Food (microbial colony observation and counting);

      6. Aerospace, military (high sophisticated weapons).

BLC-280 LCD Digital camera Datasheet

1. Camera Specification (BHC4-1080P8MPB)
