BHC4-4K8MPB HDMI+USB Digital Microscope Camera (Sony IMX485 Sensor, 4K, 8.0MP)
Introduction
1.Sony Exmor back illuminated CMOS sensor
2.4K HDMI/USB multiple video outputs
3.4K/1080P auto switching according to the display resolution
4.SD card for the captured image and video storage
5.Embedded XCamView for the control of the camera
6.With strong ISP and other related processing functions
7.ImageView software for PC
8.ImageView software for MAC
Specification
Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity | FPS/Resolution | Binning | Exposure(ms) |
BHC4-4K8MPB | Sony IMX485(C) 1/1.2"(11.14x6.26) | 2.9x2.9 | 2188mv with 1/30s 0.39mv with 1/30s | 30@3840*2160(HDMI) 20@3840*2160(USB) | 1x1 | 0.04~1000 |

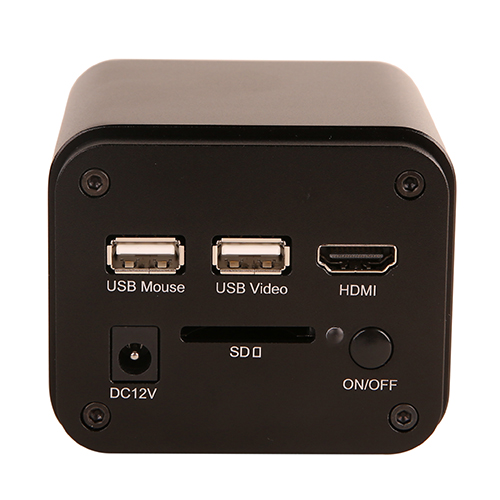

Interface | Function Description |
USB Mouse | Connect USB mouse for easy operation with embedded XCamView software; |
USB Video | Connect PC or other host device to realize video image transmission; |
HDMI | Comply with HDMI1.4 standard. 4K or 1080P format video output for standard monitor; |
DC12V | Power adapter connection (12V/1A); |
SD | Comply with SDIO3.0 standard and SD card could be inserted for video and images storage; |
LED | LED status indicator; |
ON/OFF | Power switch; |
BHC4-4K Series Camera Function Description
Video Output
Video Output Interface | Function Description |
HDMI Interface | Comply with HDMI1.4 standard; 30fps@4K or 30fps@1080P; |
USB Video Interface | Connecting USB port of PC for video transfer; MJPEG format video; |
Image Capture and Video Saving in SD Card
Function Name | Function Description |
Video Saving | Video format: 8M(3840*2160) H264/H265 encoded MP4 file; Video saving frame rate: 30fps; |
Image Capture | 8M (3840*2160) JPEG/TIFF image in SD card ; |
Measurement Saving | Measurement information saved in layer mode with image content; Measurement information is saved together with image content in burn in mode. |
ISP Function
Function Name | Function Description |
Exposure / Gain | Automatic /Manual Exposure |
White Balance | Manual /Automatic /ROI Mode |
Sharpening | Supported |
3D Denoise | Supported |
Saturation Adjustment | Supported |
Contrast Adjustment | Supported |
Brightness Adjustment | Supported |
Gamma Adjustment | Supported |
50HZ/60HZ Anti-flicker Function | Supported |
Image Operation Function
Function Name | Function Description |
Zoom In/Zoom Out | Up to 10X |
Mirror/Flip | Supported |
Freeze | Supported |
Cross Line | Supported |
Overlay | Supported |
Embedded Files Browser | Supported |
Video Playback | Supported |
Measurement Function | Supported |
Other Functions
Function Name | Function Description |
Embedded RTC(Optional) | To support accurate time on board |
Restore Factory Settings | Supported |
Multiple Language Support | English / Simplified Chinese / Traditional Chinese / Korean / Thai / French / German / Japanese / Italian / Russian |
Packing Information

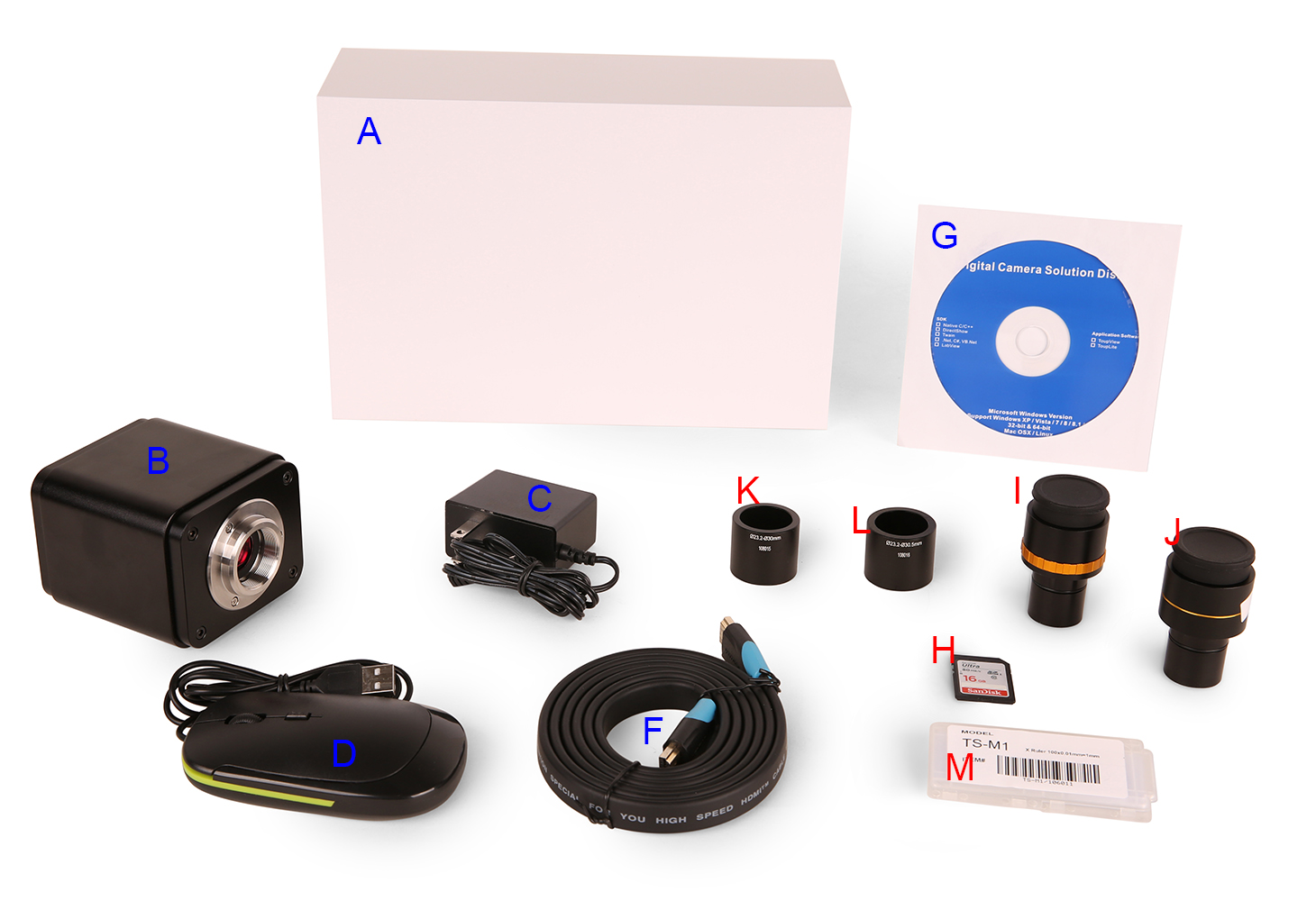

The BHC4-4K Series Camera Packing Information
Standard Packing List | |||
A | Gift box: L:25.5cm W:17.0cm H:9.0cm (1pcs,1.43kg/ box) | ||
B | BHC4-4K series camera | ||
C | Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC EMI Standard: EN55022, EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 EMS Standard: EN61000-4-2,3,4,5,6,8,11, EN61204-3, Class A Light Industry Standard | ||
European standard: Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS EMI Standard: EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 EMS Standard: EN61000-4-2,3,4,5,6,8,11 ,EN61204-3,Class A Light Industry Standard | |||
D | USB Mouse | ||
E | USB2.0 A male to A male gold-plated connectors cable /2.0m | ||
F | HDMI cable | ||
G | CD (Driver & utilities software, Ø12cm) | ||
Optional Accessory | |||
H | SD card(16G or above; Speed: class 10) | ||
I | Adjustable lens adapter | C-Mount to Dia.23.2mm eyepiece tube | 108001/AMA037 |
J | Fixed lens adapter | C-Mount to Dia.23.2mm eyepiece tube | 108005/FMA037 |
Note: For K and L optional items, please specify your camera type(C-mount, microscope camera or telescope camera), Our engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
K | 108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube | ||
L | 108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube | ||
M | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); | |
Sample Photos Captured with BHC4-4K Series Camera
Large intestine Captured with BHC4-4K8MPA
Sunflower Flower Captured with BHC4-4K8MPA
